Center Bearings

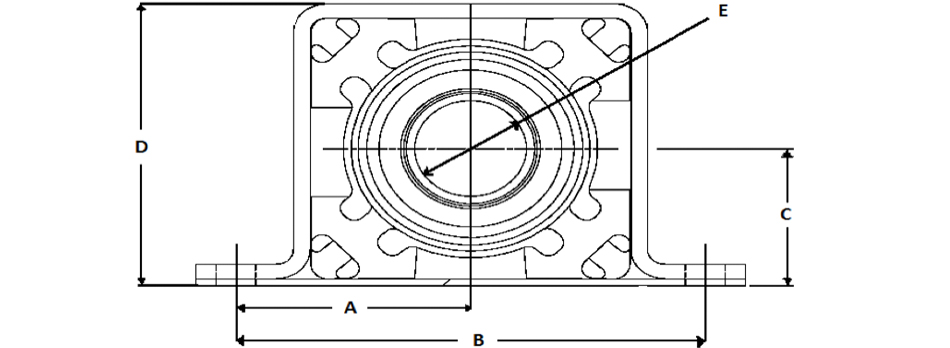

Mechanical Drawing
Driveshaft Components
AAM#Vehicle MakeA (mm)B (mm)C (mm)D (mm)E (mm)Notes
40071593GM84.50169.0059.40114.4030.00
40007020GM84.10168.2055.90109.5035.00M10 x 1.5 Stake Bolts View
40007042GM84.14168.2857.20117.5035.006.4 mm X 14.3 mm Mounting Holes View
40021334Chrysler84.14168.2057.20117.5040.006.4 mm X 14.3 mm Mounting Holes View
40021429GM84.10168.2054.90111.0040.00 View
40026573Chrysler84.10168.2057.20117.5040.00 View
40038300GM84.10168.2054.90111.0040.00 View
40048725Chrysler84.10168.2058.10116.2040.00 View
40048726Chrysler84.10168.2058.10116.2040.00 View
40053305Chrysler84.10168.3063.75N/A40.00 View
40053306Chrysler84.10168.3063.75127.4040.00 View
40088852Nissan84.20169.2556.45N/A40.00Steel Bracket View
40099621GM86.00172.0054.90113.0035.00 View
40100708GM82.00164.0035.1087.2030.00 View
40100709GM82.50164.0035.1087.2030.00 View
40120953GM84.10168.2067.90111.0940.00
40120955GM84.10168.2054.90111.0035.00
40134461GM84.10168.2061.90111.0035
40139371GM129.90237.5082.20141.1030.00
40182861GM84.10168.2054.90111.0040.00
40182864GM84.10168.2067.90111.0040.00
40182865GM84.10168.2054.90111.0940.00
