Flange Yokes

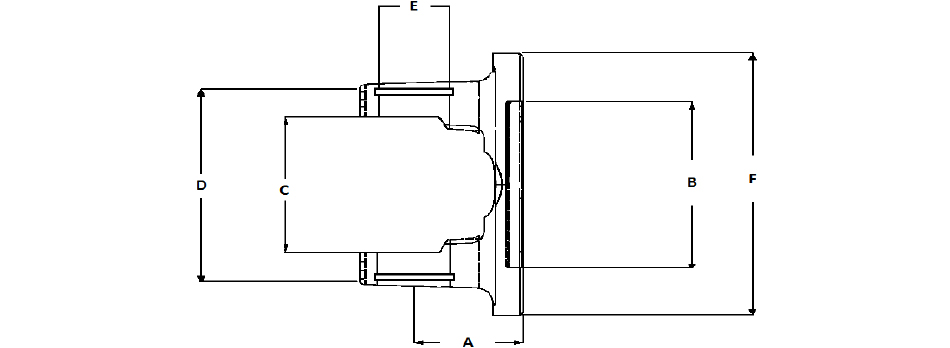

Mechanical Drawing
Driveshaft Components
AAM#Vehicle MakeSeriesStyleA (mm)B (mm)C (mm)D (mm)E (mm)F (mm)
40038046Chrysler1555Serrated70.40NAN/A128.9634.90155.00 View
40038047Chrysler1555Male Pilot57.1095.22N/A128.9634.90153.00 View
40038046Chrysler1555Serrated70.40NAN/A128.9634.90155.00 View
40038047Chrysler1555Male Pilot57.1095.22N/A128.9634.90153.00 View
40055528Chrysler1485Male Pilot57.1095.22N/A109.1034.90134 View
40055528Chrysler1485Male Pilot57.1095.22N/A109.1034.90134 View
F81Z4865DAFord148045.7068.10 View
F81Z4865DAFord148045.7068.10 View
40022500Chrysler1415Male Pilot53.2095.22N/A109.0630.17149 View
40022500Chrysler1415Male Pilot53.2095.22N/A109.0630.17149 View
40055527Chrysler1415Male Pilot57.1095.22N/A109.0630.17134 View
40055527Chrysler1415Male Pilot57.1095.22N/A109.0630.17134 View
40065822Nissan1415Female57.1065.02N/A109.0630.17140 View
40065822Nissan1415Female57.1065.02N/A109.0630.17140 View
2C3Z4865BAFord141050.8075.00
2C3Z4865BAFord141050.8075.00
F81Z4865CAFord141041.1068.10 View
F81Z4865CAFord141041.1068.10 View
40005913GM1355Female51.272.58N/A94.8630.41142.30 View
40005913GM1355Female51.272.58N/A94.8630.41142.30 View
40038359Chrysler1355Serrated52.50SerratedN/A94.8630.1798.20 View
40038359Chrysler1355Serrated52.50SerratedN/A94.8630.1798.20 View
F81Z4865GLFord1350 CV41.1068.10 View
F81Z4865GLFord1350 CV41.1068.10 View
40019801Chrysler1344/3RSerrated52.50Serrated64.99N/A28.5798.20 View
40019801Chrysler1344/3RSerrated52.50Serrated64.99N/A28.5798.20 View
E9TZ4782BFord133041.09 View
E9TZ4782BFord133041.09 View
E1DZ4782AFord131041.9050.80
E1DZ4782AFord131041.9050.80
