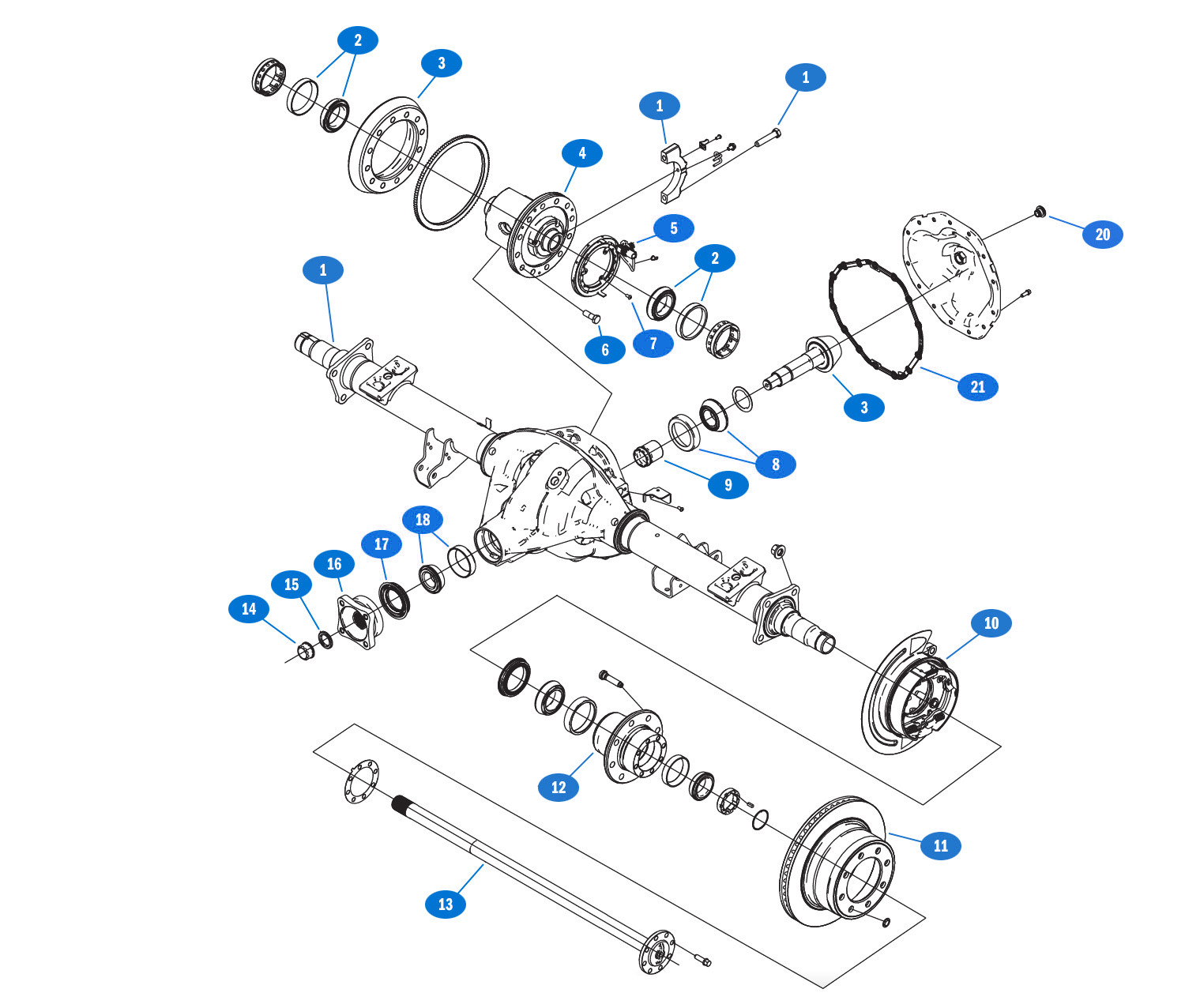

10.5 RearAxle 14Bolt e-lock
ILL #CATALOG PART #AAM PART #OEM PART #ACTIVE PART #DESCRIPTIONNOTES / KITS / ASSEMBLIESQTY BY AXLEUSAGEMODEL YEAR
1Axle HousingNot Offered12500 (DR/DH)2005-2012
294177829417782Differential Bearing Assembly (Roller)Sold as Individual Part22500 (DR/DH)2005-2012
294177839417783Differential Bearing Assembly (Race)Sold as Individual Part22500 (DR/DH)2005-2012
34000935405175300AA40009354Ring & Pinion Gear Set (4.56 Ratio; 2 Cut)Sold as Individual Part (40009354)12500 (DR/DH)2005-2012
44004727505175301ABDifferential Case & Coil Asm. (Tracrite® GTL - Electronic)Not Offered12500 (DR/DH)2005-2012
540042920Coil AsmNot Offered12500 (DR/DH)2005-2012
64002281240022812Ring Gear Bolt w/ AdhesiveSold as Individual Part (40022812) or kit 74010013122500 (DR/DH)2005-2012
74003047540030475Screw Coil Target Bracket & ConnectorSold as Individual part32500 (DR/DH)2005-2012
840012648Pinion Head Bearing AssemblyNot Offered12500 (DR/DH)2005-2012
94001020740010207Collapsible SpacerSold as Individual Part (40010207) or kit 74010013, 7402001212500 (DR/DH)2005-2012
10Park Brake AsmNot Offered22500 (DR/DH)2005-2012
11RotorNot Offered22500 (DR/DH)2005-2012
12Hub AsmNot Offered22500 (DR/DH)2005-2012
134002227940022279Axle Shaft (935 MM; 30 Tooth; 8 Bolt)Sold as Individual Part (40022279)22500 (DR/DH)2005-2012
144000302705086782AA40003027Pinion NutSold as Individual Part (40003027)12500 (DR/DH)2005-2012
154000325505086781AA40003255Pinion Nut WasherSold as Individual Part (40003255) or kit 74010013, 7402001212500 (DR/DH)2005-2012
164006227205127609AD40062272Pinion Yoke (Piloted)Sold as Individual Part12500 (DR/DH)2005-2012
17260640302606403026064030Pinion SealSold as Individual Part12500 (DR/DH)2005-2012
18941835794183579418357Pinion Tail Bearing RollerSold as Individual Part12500 (DR/DH)2005-2012
18941835894183589418358Pinion Tail Bearing RaceSold as Individual Part12500 (DR/DH)2005-2012
2040015796CoverpanNot Offered12500 (DR/DH)2005-2012
2140011815Rubber Over Metal Coverpan GasketNot Offered12500 (DR/DH)2005-2012
Kit7401001374010013Master Install Kit: Coverpan Bolt W/ Adhesive, Rubber Over Metal Coverpan26064030, 26060977, 40003255, 40010207, 40022812, 40002169, 40020764, 40020799, 40010027,12500 (DR/DH)2003-2012
Kit74067010Master Bearing Kit: Differential Bearing Assembly, Pinion Head Bearing AsNot Offered12500 (DR/DH)2003-2012
Kit74049286Differential Gear Kit: Pinion Gear, Side Thrust Washer, Side Gear, PinionNot Offered12500 (DR/DH)2003-2012
Kit7407000574070005Wheel End Kit: Inner Wheel End Race, Inner Wheel End Bearing, Outer Wheel40047505, 40020764, 00341509, 00341510, 00341511, 09428539, 09428909, 4015400CONE, 401540012500 (DR/DH)2003-2018
Kit7403001574030015Coverpan Kit: Coverpan, Rubber Over Metal Coverpan Gasket, Coverpan Bolt 40012622, 40002169, 40010027, 4000760112500 (DR/DH)2003-2012
Kit7402001274020012Pinion Kit: Triple Lip Pinion Seal, Collapsible Spacer, Pinion Seal Sleev26064030, 26060977, 40010207, 40003255, 4012614912500 (DR/DH)2003-2012
