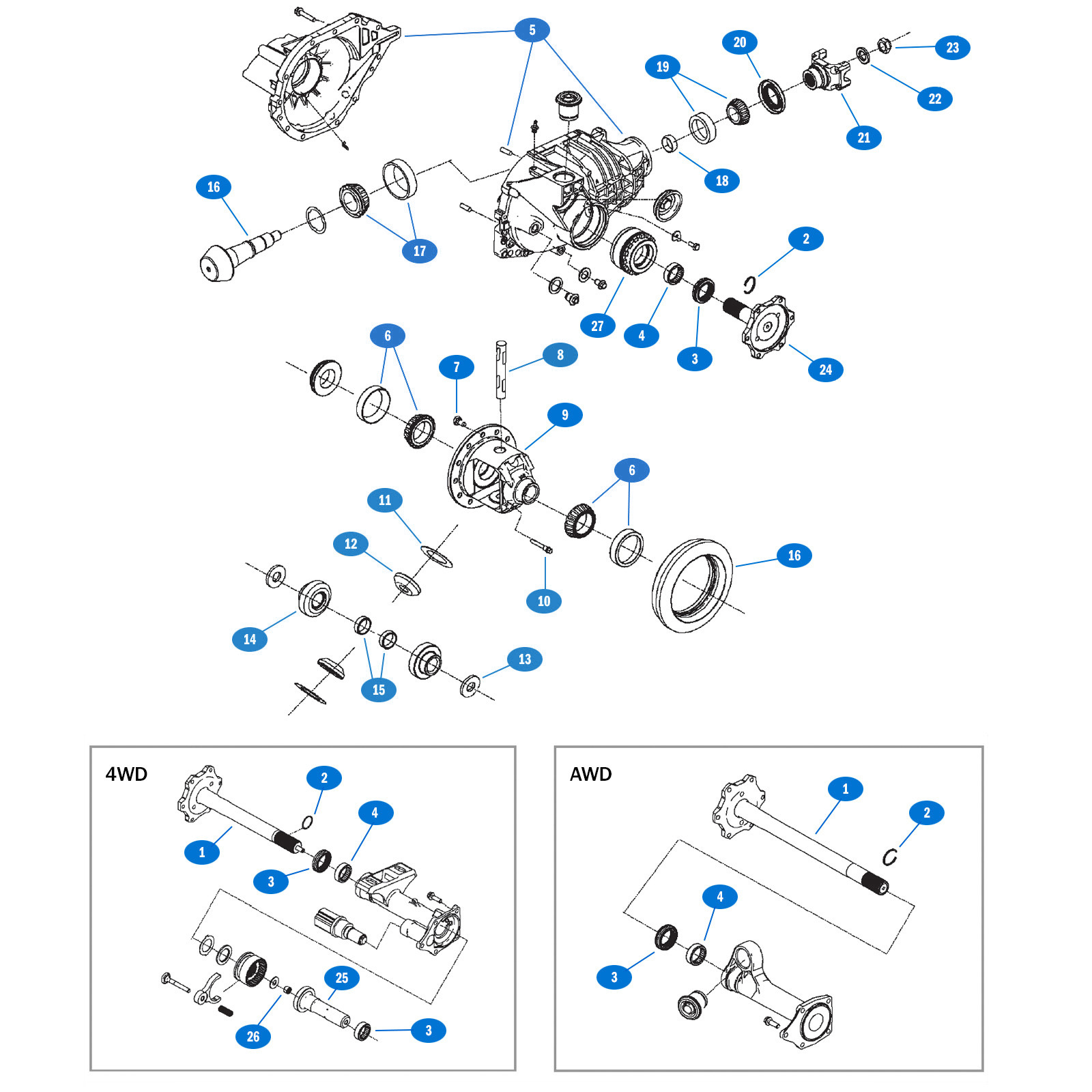

9.25 FrontAxle IFS Clamshell
ILL #CATALOG PART #AAM PART #OEM PART #ACTIVE PART #DESCRIPTIONNOTES / KITS / ASSEMBLIESQTY BY AXLEUSAGEMODEL YEAR
1400570731920669740057073Axle Shaft (517 MM; 33 Tooth; 6 Bolt) Note: Can Service 1997-2008 If Used With Internal GeSold as Individual Part (40057073)1AWD2007-2009
1400392011580150040039201Axle Shaft (357 MM: 33 Tooth; 6 Bolt) RHSold as Individual Part (40039201)14WD1999-2009
2400406101552187840040610Axle Shaft Retaining RingSold as Individual Part (40040610) or Kit 74010011, 7405000524WD1988-2009
3400512831916912440051283Output SealSold as Individual Part (40051283) or Kit 74010011, 7405000524WD & AWD1997-2009
4155218731552187315521873Roller Bearing ASMSold as Individual Part (15521873) or Kit 74010011, 7405000524WD & AWD1998-2009
5Carrier HousingNOT OFFERED
61150512311505123Diff. Case Bearing ASM (Cup & Cone)NOT OFFERED24WD & AWD1988-2009
64017654284678054Diff. Case Bearing ASM (Cup & Cone)Not saleable individually 7406700524WD & AWD1988-2009
7140127031401270314012703Ring Gear Bolt w/ AdhesiveSold as Individual Part (14012703) or Kit74010011124WD & AWD1988-2009
8140127001401270014012700Pinion ShaftAvailable In Kit Only (Part# 74040363)14WD & AWD1988-2009
91401269514012695Differential Open Case (Without Internals)Sold as Individual Part (14012695)14WD & AWD1988-2009
94003504640035046Differential Open Case Assembly (With Internals)Sold as Individual Part (40035046)1GMT800/ 900/H22005-2009
101401270214012702Pinion Shaft Lock ScrewAvailable In Kit Only (Part# 74040363)14WD & AWD1988-2009
111401269914012699Pinion Thrust WasherAvailable In Kit Only (Part# 74040363)24WD & AWD1988-2009
122605148426051484Pinion GearAvailable In Kit Only (Part# 74040363)24WD & AWD1988-2009
131401269714012697Side Thrust WasherAvailable In Kit Only (Part# 74040363)24WD & AWD1988-2009
144003521640035216Side GearAvailable In Kit Only (Part# 74040363)24WD & AWD2007-2009
15Side Gear SpacerNot offered24WD & AWD1988-2005
164014059440140594Ring & Pinion Gearset (3.42 Ratio)Sold as Individual Part (40140594)14WD1988-2009
16400585362092080940058536Ring & Pinion Gearset (3.73 Ratio)Sold as Individual Part (40058536)14WD1988-2009
16400723072092081240072307Ring & Pinion Gearset (4.10 Ratio)Sold as Individual Part (40072307)14WD & AWD1988-2009
1640024878Ring & Pinion Gearset (4.56 Ratio)NOT OFFERED14WD1988-2009
17457108457108Large Pinion Bearing (Cup & Cone)NOT OFFERED14WD & AWD1988-2009
18140126911401269114012691Collapsible SpacerSold as Individual Part (14012691) or Kit 74010011, 74020008, 7406700514WD & AWD1988-2009
1994177819417781Small Pinion Bearing ASM (Cup & Cone)Sold as Individual Part (09417782 bearing & 09417783 race)14WD & AWD1988-2009
20400077121247159040007712Pinion SealSold as Individual Part (40007712) or Kit 74010011,74020008, 7406700514WD & AWD1997-2009
21400259258896702740025925Pinion Yoke (1344 Ujt; 4 Footed)Sold as Individual Part (40025925)14WD & AWD1988-2009
22517900517900517900Pinion Nut WasherSold as Individual Part (00517900) or Kit 74010011, 74020008,7406700514WD & AWD1988-2009
23978376297837629783762Prevailing Torque Pinion NutSold as Individual Part (09783762) or Kit 74010011, 74020008, 7406700514WD & AWD1988-2009
244005707140057071Output Shaft (148 MM; 33 Tooth; 6 Bolt) LH Note: Can Service 1997-2008 If Used With InternSold as Individual Part (40057071)1GMT 900/H22007-2009
25400292521912190940029252Inner Output Shaft ASMSold as Individual Part (40029252) or Kit 7408000814WD1988-2009
262604151626041516Inner Output Shaft Bearing ASMSold as Individual Part (26041516) or Kit 74010011, 74050005, 7408000814WD1988-2009
2740015035Bearing AdjusterSold as Individual Part (40015035)22003-2009
Kit74010011Master Install Kit: Output Seal, Snap Ring, Vent Connector, Tube Bolt W/ 26031703, 40007712, 14012691, 14012703, 14045736, 40051283, 15588383, 26036835, 14042602,11999-2009
Kit7406700574067005Master Bearing Kit: Pinion Head Bearing Roller, Pinion Head Bearing Race,14012691, 00517900, 09783762, 09417782, 09417783, 26064029, 40007712, 40176544, 40176545,11988-2009
Kit7404703774047037Differential Gear Kit: Pinion Gear, Pinion Thrust Washer, Side Gear, Pini26051484, 14012699, 26051485, 14012697, 15562346, 14012700, 1401270212006-2009
Kit7402000874020008Pinion Seal Kit: Pinion Seal, Collapsible Spacer, Prevailing Torque Pinio40007712, 14012691, 09783762, 0051790011999-2009
Kit7405000574050005Output Shaft Seal Kit: Output Seal, Roller Bearing Asm, Tube Bolt W/ Wash40051283, 15521873, 26031703, 40051849, 40040610, 26036835, 26641516, 1553029611997-2009
Kit7408000874080008Disconnect Shifter Kit: Tube Bolt W/ Washer & Adhesive, I/O Axle Shaft, R26036835, 40058706, 40007547, 15588371, 15530296, 40007173, 26031703, 40051849, 26041516,12001-2009
Kit7404036374040363Differential Gear KitsIncludes SIde and pinion gears, washers, cross pin and screw12007-2009
