Exp View | American Axle & Manufacturing

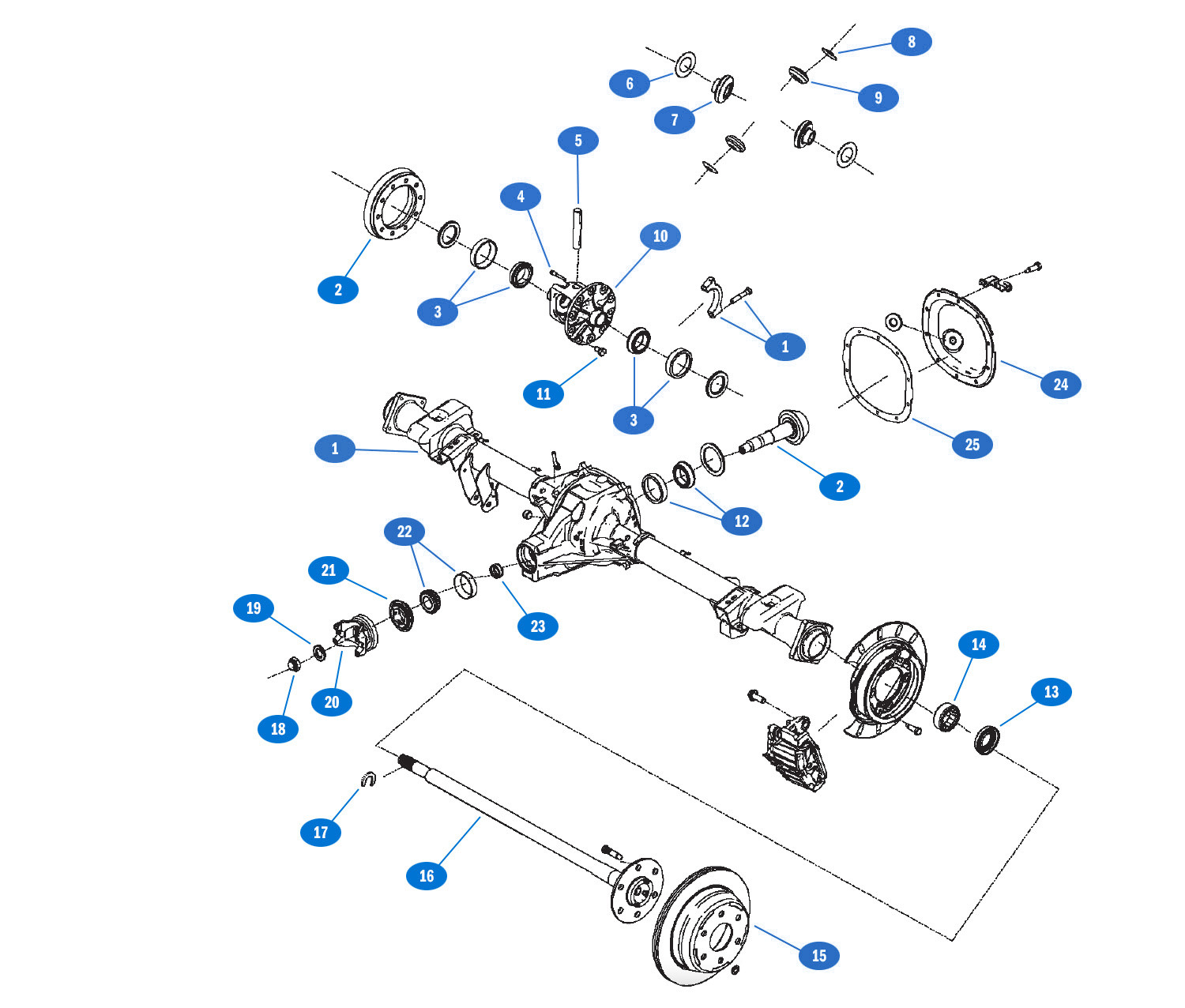

7.6 RearAxle Salisbury 10Bolt
ILL #	CATALOG PART #	AAM PART #	OEM PART #	ACTIVE PART #	DESCRIPTION	NOTES / KITS / ASSEMBLIES	QTY BY AXLE	USAGE	MODEL YEAR
1					Axle Housing	NOT OFFERED
2		40022978	12479298	40022978	Ring & Pinion Gearset (3.42 Ratio; 2 Cut)	Sold as Individual Part (40022978)	1	F,S;T;POSTAL	1991-2005
2		40020428	12479239	40020428	Ring & Pinion Gearset (3.73 Ratio; 2 Cut)	Sold as Individual Part (40020428)	1	S;T;M;L	1982-2005
2		40020431	12479240	40020431	Ring & Pinion Gearset (4.10 Ratio; 2 Cut)	Sold as Individual Part (40020431)	1	S;T;M;L	1982-2005
3		9420095	9420095		Diff. Case Bearing Asm (Cup & Cone)	Available In Kit Only (Part# or Kit# needed)	2	S;T;M;L;POSTAL	1982-2005
4		40053856	25872305	40053856	Pinion Shaft Lock Screw	Available AS Individual parts and as Kit 74042550	1	S;T;M;L;POSTAL	1982-2005
5		40012667			Pinion Shaft	Available In Kit 74042550 Only	1	S;T;M;L	1982-2005
6		26063838	26063838	26063838	Side Thrust Washer	Available AS Individual parts and as Kit 74042550	2	S;T;M;L	1988-2005
7		26051479	26051479	26051479	Side Gear	Available AS Individual parts and as Kit 74042550	2	S;T;M;L	1988-2005
8		40014964	12479223	40014964	Pinion Thrust Washer	Available AS Individual parts and as Kit 74042550	2	S;T;M;L	1988-2005
9		26051478	26051478	26051478	Pinion Gear	Available AS Individual parts and as Kit 74042550	2	S;T;M;L	1988-2005
10			26033477		Differential Open Case (Without Internals)	NOT OFFERED	1	F,S;T;M;L	1985-2005
10			26058615		Differential Open Case Assembly (With Internals), 3.23 Ratio+	NOT OFFERED	1	F,S;T;M;L	1985-2005
11		40061033	11610549	40061033	Serrated Ring Gear Bolt W/ Adhesive	Sold as Individual Part (40061033) or Kit 74010003	10	S;T;M;L;POSTAL	1982-2005
12			22510042		Large Pinion Bearing Asm (Cup & Cone)	NOT OFFERED	1	S;T;M;L;POSTAL	1982-2005
13		40001710	12471686	40001710	Output Seal	Sold as Individual Part (40001710) or Kit 74010003	2	S;T;M;L	1988-2005
14		40008157	12479031	40008157	Roller Bearing Asm	Sold as Individual Part (40008157)	2	M;L	2002-2005
15					Rotor	NOT OFFERED	2	M;L	2003-2009
15					Rotor	NOT OFFERED	2	S;T	1997-2005
16		26016760	26016760	26016760	Axle Shaft (788 MM; 28 Tooth; 5 Bolt; Drum; 2WD)	Sold as Individual Part (26016760)	2	POSTAL	1990-1995
16		26058696	26058696		Axle Shaft (671 MM; 28 Tooth; 5 Bolt; 2WD & 4WD) LH/RH	Sold as Individual Part (26058696)	2	S;T	1998-2003
16		26059972	26059972		Axle Shaft With Exciter Ring & Bolts (809 MM; 28 Tooth; 5 Bolt; Disc)	NOT OFFERED	2	F	1992-2002
16		26059962	26059962		Axle Shaft (809 MM; 28 Tooth;; 5 Bolt) LH/RH	NOT OFFERED	2	F CAR	1998-2002
16		26063146	26063146		Axle Shaft (812 MM; 28 Tooth;; 5 Bolt)	NOT OFFERED	2	F CAR	1993-1997
17		344171	344171	344171	Axle C Lock	Sold as Individual Part (00344171) or Kit 74010003, 74050009	2	S;T;M;L;POSTAL	1982-2005
18		9783762	9783762	9783762	Prevailing Torque Pinion Nut	Sold as Individual Part (09783762) or Kit 74010003, 74067006, 74020005	1	S;T;M;L;POSTAL	1982-2005
19		517900	517900	517900	Pinion Nut Washer	Sold as Individual Part (00517900) or Kit 74010003, 74067006, 74020005,	1	S;T;M;L;POSTAL	1982-2005
20		40016324	12479331	40016324	Pinion Yoke (1344 U-Joint; 4 Footed)	Sold as Individual Part (40016324)	1	S;T;M;L	2000-2009
21		40006689	12471523	40006689	Pinion Seal	Sold as Individual Part (40006689) or Kit 74010003, 74067006, 74020005	1	S;T;M;L	1982-2009
22			9417784		Small Pinion Bearing Asm (Cup & Cone)	NOT OFFERED	1	S;T;M;L	1982-2005
23		09785792	9785792	09785792	Collapsible Spacer	Sold as Individual Part (09785792) or Kit 74010003, 740670006, 74020005	1	S;T;M;L	1982-2005
24		40004968			Coverpan	NOT OFFERED	1	S;T;M;L;POSTAL	1975-2001
25		26016661	26016661		Cover Pan Gasket	NOT OFFERED	1	S;T;M;L;POSTAL	1975-2005
Kit	74010003			74010003	Master Install Kit: Seal Asm - F-Car '93-'02, Seal Asm - M/L Disc '03-'05	40006689, 40006690, 40061033, 26016661, 40001710, 26011061, 26029139, 26029137, 00344171,	1		2000-2011
Kit	74067006			74067006	Master Bearing Kit: Pinion Head Bearing Asm (Cup & Cone), Pinion Tail Bea	09785792, 00517900, 0973762, 40006689, 40053554, 40053555, 40053551, 40053552, 40053557, 4	1		1982-2011
Kit	74042550				Differential Gear Kit: Pinion Gear, Side Thrust Washer, Side Gear, Pinion	26051478, 40014964, 26063838, 40012667, 26051479, 40053856	1		1989-2004
Kit	74020005			74020005	Pinion Seal Kit: Pinion Seal, Pinion Seal Sleeve, Collapsible Spacer, Pin	40006689, 40006690, 00517900, 09783762, 09785792	1		2000-2005
Kit	74030002				Coverpan Kit: Special Coverpan Bolt, Coverpan Gasket, Coverpan Bolt, Cove	40004968, 26016661, 00563592, 03858700	1		1993-2002
Kit	74050010				Output Shaft Seal Kit: Output Seal, Tone Ring, Roller Bearing Asm, Axle C	40001710, 40008157, 40016199, 00344171	1		2002-2012
Kit	74050007				Wheel End Kit: C-Locks, Output Seal, Wheel Bearing	26029139, 40010075, 00344171	1		1990-2002
Kit	74050008				Wheel End Kit: C-Locks, Output Seal, Wheel Bearing	26011061, 40011045, 00344171	1		1990-2002
Kit	74050009			74050009	Wheel End Kit: C-Locks, Output Seal, Wheel Bearing	26029137, 40010075, 00344171	1		1992-2004
