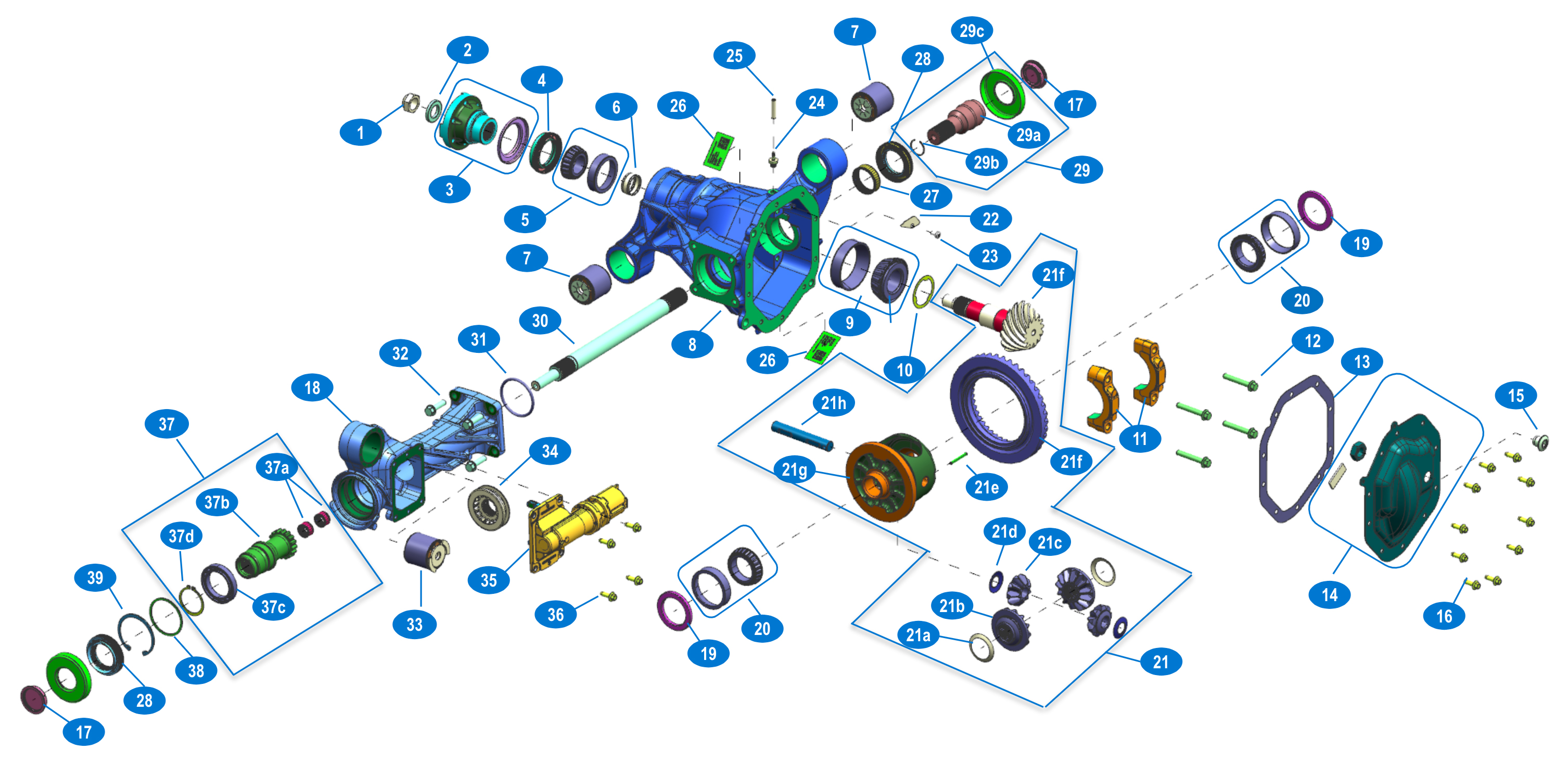

| 1 | | 9783762 | 9783762 | 9783762 | Nut, Rear Axle Drive Pinion | Sold as Individual Part (9783762) or Kit (74067030, 80T1342GEARKit, 80T1323GEARKit, 80T137 | 1 | AWD | 2019 - 2024 | | |
| 2 | | 517900 | 517900 | 517900 | Washer, Pinion Flange | Sold as Individual Part (517900) or Kit (74067030, 80T1342GEARKit, 80T1323GEARKit, 80T1373 | 1 | AWD | 2019 - 2024 | | |
| 3 | | 40221063 | | 40221063 | Flange Asm, Deflector | Sold as a individual part | 1 | AWD | 2019 - 2024 | | |
| 4 | | 40178781 | 84428304 | 40178781 | Seal, Pinion | Sold as individual Part (40178781) or Kit (74067030, 80T1342GEARKit, 80T1323GEARKit, 80T13 | 1 | AWD | 2019 - 2024 | | |
| 5 | | 40155444 | 84428300 | 40155444 | Tail Bearing Asm, Tapered Cone and Cup | Sold as Individual Part (40155444) or Kit (74067030) | 1 | AWD | 2019 - 2024 | | |
| 6 | | 40010355 | 12479162 | 40010355 | Spacer, Pinion Bearing | Sold as individual part (40010355) or Kit (80T1342GEARKit, 80T1323GEARKit, 80T1373GEARKit) | 1 | AWD | 2019 - 2024 | | |
| 7 | | 40231595 | 85644582 | | Bushing (Carrier) | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 8 | | 40211502 | | | Carrier Asm | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 9 | | 40155440 | 84428299 | 40155440 | Head Bearing Asm, Tapered Cone and Cup | Sold as Individual Part (40155440) or Kit (74067030) | 1 | AWD | 2019 - 2024 | | |
| 10 | | 40068426 | | | Shim, Pinion | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 11 | | 40225858 | | | Cap, Diff Brg | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 12 | | 40093444 | 94767705 | | Cap Bolt, M10 X 1.5 | Not Offered | 4 | AWD | 2019 - 2024 | | |
| 13 | | 40171221 | 84428297 | 40171221 | Gasket, Coverpan | Sold as a individual part | 1 | AWD | 2019 - 2024 | | |
| 14 | | 40182934 | 84428296 | 40182934 | Cover Pan Asm, Diff Carrier | Sold as a individual part | 1 | AWD | 2019 - 2024 | | |
| 15 | | 40162331 | 11602812 | 40162331 | Plug, Fill/Drain | Sold as a individual part | 1 | AWD | 2019 - 2024 | | |
| 16 | | 40166465 | 11602482 | 40166465 | Cover Pan Bolt, M8 X 1.25 | Sold as individual part | 10 | AWD | 2019 - 2024 | | |
| 17 | | 40181961 | | | Protector, Shipping | Not Offered | 2 | AWD | 2019 - 2024 | | |
| 18 | | 40185095 | | | Tube, Diff (Mach) | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 19 | | 40164403 | | | Shim, Diff Bearing | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 20 | | 40155447 | 84428301 | 40155447 | Diff Case Bearing Asm, Tapered Cone and Cup | Sold as Individual Part (40155447) or Kit (74067030) | 2 | AWD | 2019 - 2024 | | |
| 21 | | 40223986 | 85524487 | 80T1323GEARKIT | Case asm, Diff and Ring (Weld) 3.23 STD | Sold as Kit (80T1323GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21 | | 40211508 | 87864978 | 80T1323ELDGEARKIT | Case asm, Diff and Ring (Weld) 3.23 ELD | Sold as Kit (80T1323ELDGEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21 | | 40223987 | 85524488 | 80T1342GEARKIT | Case asm, Diff and Ring (Weld) 3.42 STD | Sold as Kit (80T1342GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21 | | 40223988 | 85524489 | 80T1373GEARKIT | Case asm, Diff and Ring (Weld) 3.73 STD | Sold as Kit 80T1373GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21a | | 40152168 | | | WASHER, DIFF SIDE THRUST | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 2 | AWD | 2019 - 2024 | | |
| 21b | | 40204492 | | | GEAR, DIFF SIDE (MACH) | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 2 | AWD | 2019 - 2024 | | |
| 21c | | 40152540 | | | GEAR, DIFF PINION (MACH) | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 2 | AWD | 2019 - 2024 | | |
| 21d | | 40152169 | 84937897 | | WASHER, DIFF PINION THRUST | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 2 | AWD | 2019 - 2024 | | |
| 21e | | 40042653 | 84937902 | | PIN, COILED ROLL | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| 21f | | 40151721 | | | Gear set 3.23 | Sold as Kit (80T1323GEARKIT) or (80T1323ELDGEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21f | | 40151722 | | | Gear set 3.42 | Sold as Kit (80T1342GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21f | | 40151723 | | | Gear set 3.73 | Sold as Kit 80T1373GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21g | | 40223984 | | | CASE, DIFFERENTIAL (MACH) | Sold as Kit (80T1323GEARKIT) or (80T1342GEARKIT) or (80T1373GEARKIT) | 1 | AWD | 2019 - 2024 | | |
| 21h | | 40152170 | | | SHAFT, DIFF PINION | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| 22 | | 40185615 | 84428303 | | Baffle, Oil | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 23 | | 40040527 | 11570519 | | Bolt, M6 X 1 | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 24 | | 40163653 | 12471619 | 40163653 | Connector, Vent Hose | Sold as individual part | 1 | AWD | 2019 - 2024 | | |
| 25 | | 40008079 | | 40008079 | Cap-Vent Connector | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 26 | | 40152414 | | | Label, Axle Bar Code | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 27 | | 40152396 | 84428298 | 40152396 | Bearing, Needle LH Output Shaft | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 28 | | 40177866 | 84428310 | 40177866 | Seal, Output | Sold as Individual Part | 2 | AWD | 2019 - 2024 | | |
| 29 | | 40242810 | 87821660 | 40242810 | Shaft, Output Assembly STD | Assembly that includes Output shaft , snap ring and Deflector | 1 | AWD | 2019 - 2024 | | |
| 29 | | 40242811 | 87821661 | 40242811 | Shaft, Output Assembly ELD | Assembly that includes Output shaft , snap ring and Deflector | 1 | AWD | 2019 - 2024 | | |
| 29a | | 40242807 | | | Shaft, Output (Mach) STD | Sold as assembly (40242810) | 1 | AWD | 2019 - 2024 | | |
| 29a | | 40242808 | | | Shaft, Output (Mach) ELD | Sold as assembly (40242811) | 1 | AWD | 2019 - 2024 | | |
| 29b | | 40183268 | | | Ring, Snap | Sold as Sold as assembly (40242810/40242811) | 1 | AWD | 2019 - 2024 | | |
| 29c | | 40242803 | 87821663 | | Deflector, Seal | Sold as Sold as assembly (40242810/40242811) | 2 | AWD | 2019 - 2024 | | |
| 30 | | 40185479 | 84428315 | 40185479 | Shaft, Intermediate (Mach) STD Axle | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 30 | | 40211555 | 85120720 | | Shaft, Intermediate (Mach) ELD Axle | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 31 | | 40222885 | 84983738 | 40222885 | O-Ring | Offered | 1 | AWD | 2019 - 2024 | | |
| 32 | | 40178227 | 11602811 | 40178227 | Tube Bolt, M10 X 1.5 | Sold as Individual Part | 4 | AWD | 2019 - 2024 | | |
| 33 | | 40231596 | 85644583 | | Bushing | Not Offered | 1 | AWD | 2019 - 2024 | | |
| 34 | | 40209817 | 85120721 | 40209817 | Collar, Shift Fork | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 35 | | 40205911 | 84648804 | | Actuator, Disconnect | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 35 | | 40270497 | 85073905 | 40270497 | Actuator, Disconnect | Sold as Individual Part. Replaced 40205911 | 1 | AWD | 2019 - 2025 | | |
| 36 | | 40166465 | 11602482 | 40166465 | Actuator Bolt, M8 X 1.25 | Sold as Individual Part | 4 | AWD | 2019 - 2024 | | |
| 37 | | 40242805 | | 40242805 | Shaft, Output Assembly | Assembly that includes Output shaft, needle bearings, ball bearing ans snap ring | 1 | AWD | 2019 - 2024 | | |
| 37a | | 40152400 | | | Bearing, Needle | Sold as assembly (40242805) | 2 | AWD | 2019 - 2024 | | |
| 37b | | 40242804 | | | Shaft, Output (Mach) | Sold as assembly (40242805) | 1 | AWD | 2019 - 2024 | | |
| 37c | | 40152401 | 84428323 | | Bearing, Ball | Sold as assembly (40242805) | 1 | AWD | 2019 - 2024 | | |
| 37d | | 40182692 | 84428324 | | Ring, Snap | Sold as assembly (40242805) | 1 | AWD | 2019 - 2024 | | |
| 38 | | 40153731 | 11602483 | 40153731 | Washer | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| 39 | | 40182662 | 84428317 | 40182662 | Ring, Snap | Sold as Individual Part | 1 | AWD | 2019 - 2024 | | |
| Kit | 80T1323GEARKIT | | | 80T1323GEARKIT | Ring and Pinion Kit 8.0" 3.23 Standard | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| Kit | 80T1323ELDGEARKIT | | | 80T1323ELDGEARKIT | Ring and Pinion Kit 8.0" 3.23 E-locker | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| Kit | 80T1342GEARKIT | | | 80T1342GEARKIT | Ring and Pinion Kit 8.0" 3.42 Standard | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| Kit | 80T1373GEARKIT | | | 80T1373GEARKIT | Ring and Pinion Kit 8.0" 3.73 Standard | Includes Welded Differential Case Assembly & Ring, Seal, Washer, Nut, and Spacer | 1 | AWD | 2019 - 2024 | | |
| Kit | 74067030 | | | 74067030 | Master Bearing Kit 8.0" | Head, Tail and Differential bearing assemblies; pinion seal, nut, spacer and washer. | 1 | AWD | 2019 - 2024 | | |
